EAN: 4260608587235

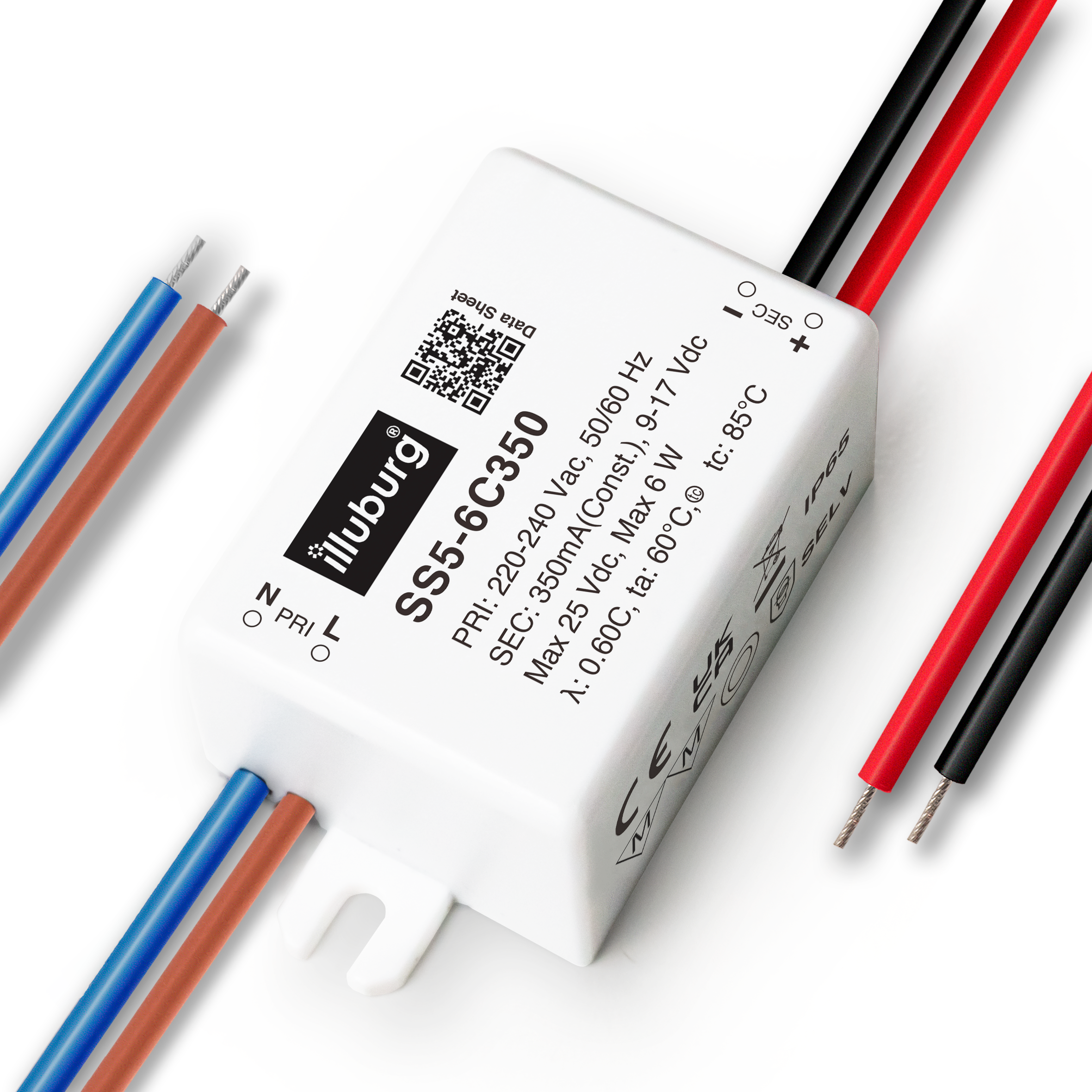

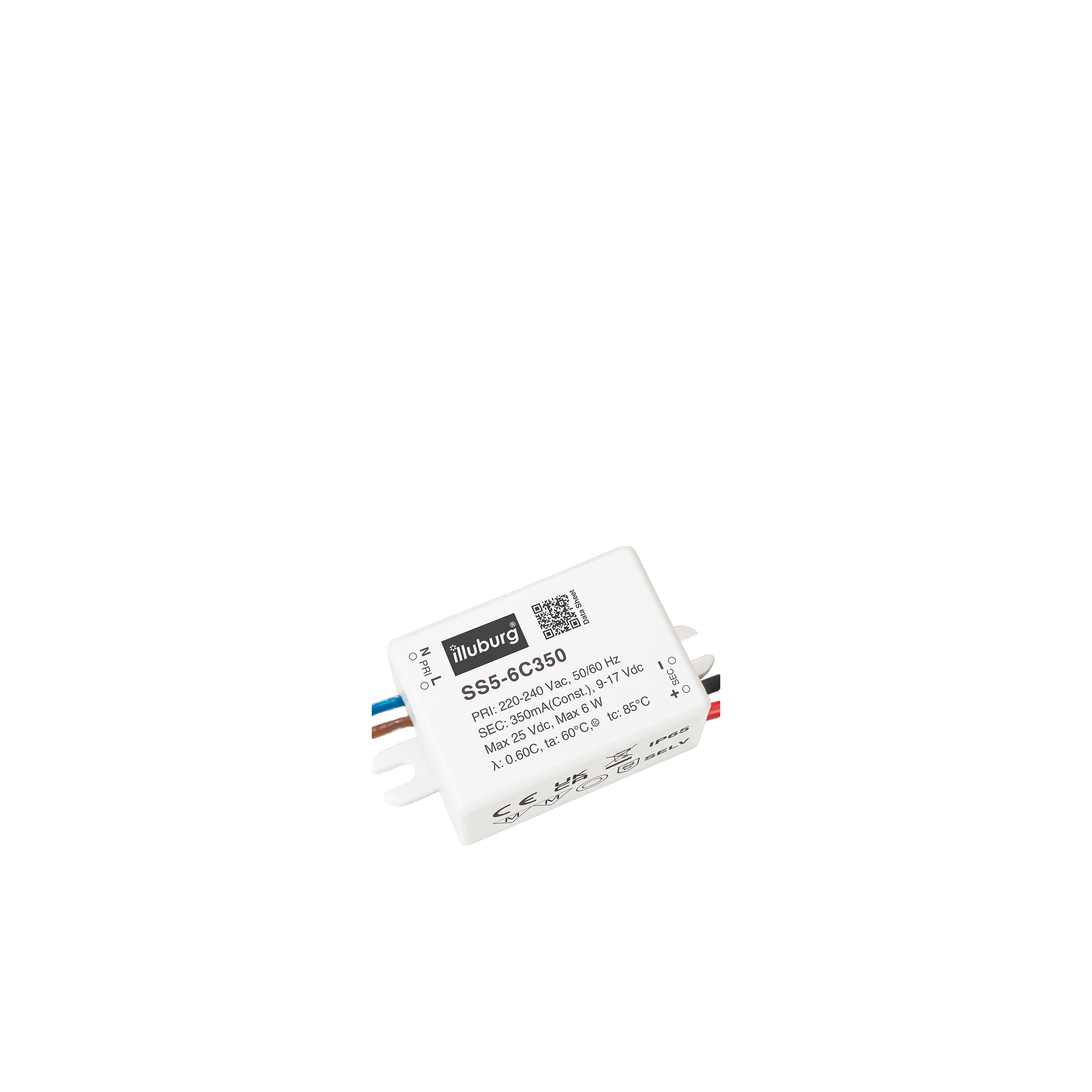

SS5-6C350 (350mA 6W)
Description
LED Trafo 350mA 6W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
SS5-6C350
LED power supply for 350 mA constant current
9…17 Vdc, 3.15…5.95 W, IP65, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage | 198…264 Vac |
| Input Voltage (DC) | 176…370 Vdc |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.60C Full load |
| Input Current | 0.08 A max. |
| Inrush Current | 10 A max. th = 100 μs, cold start |
| No-load Loss | ≤ 0.5 W |
| Output Voltage | 9…17 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 3.15…5.95 W |
| Efficiency | ≥ 74 % |
| Life Time | > 50,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+60 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 5…85 % |
| Protection Class | II |
| Type of Protection | IP65 |
LED Trafo 350mA 12W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 60598-1, EN 62384 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Cable Length, input side | 180 ± 5 mm |
| Cable Length, output side | 180 ± 5 mm |
| Cable Cross-Section, input side | 2 x 0.5 mm² |
| Cable Cross-Section, output side | 2 x 22 AWG |
| Cable Preparation Length, input side | 10 mm tinned |
| Cable Preparation Length, output side | 10 mm tinned |
Dimension
Connection
