EAN: 4260608588270

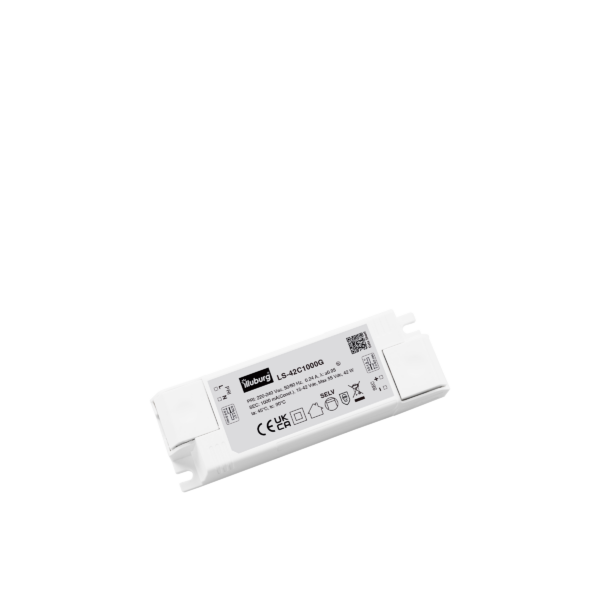

LS-42C1000G (42W 1000mA)
Description
LED Trafo 40W 1000mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
LS-40C1000G
LED power supply for 1000 mA constant current
15…42 Vdc, 15…42 W max., IP20, independent installation, non-dimmable
Electrical data
| Rated input voltage | 220…240 Vac |
| Range of input voltage (AC) | 198…264 Vac |
| Range of input voltage (DC) | 220…280 Vdc |
| Mains Frequency | 50/60 Hz |
| Power factor (λ) | ≥ 0.95 Full load, 230 Vac |
| Input current | 0.24 A max. |
| Inrush current | 30 A max. |
| Leakage current | < 250 μA |
| Output voltage | 15…42 Vdc |
| Output current | 1000 mA |
| Output power (nominal) | 15…42 W max. |
| Efficiency | ≥ 89 % |
| Life time | > 50,000 h |
| Dimmable | No |
LED Trafo 40W 1000mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Operating condition
| Operating temperature range (ta) | -20…+45 °C |
| Max. Surface temperature (tc) | 90 °C |
| Permitted rel. humidity | 10…90 % |
| Protection class | II |
| Type of protection | IP20 |
Protection
| Short circuit protection | Yes * |
| Overload protection | Yes * |
| No-load protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
LED Trafo 40W 1000mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval marks | CE, UKCA |
| RoHS compliant | Yes |
Installation
| Type of installation | Independent installation |
| Type of connection | Spring-loaded terminal |
| Cable cross-section, input side | 0.75…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Cable preparation length, input side | 7…9 mm |
| Cable preparation length, output side | 7…9 mm |
Dimension
Connection
