EAN: 4260608588751
LS-60C1400G (60W 1400mA)
Description
LED Trafo 60W 1400mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator

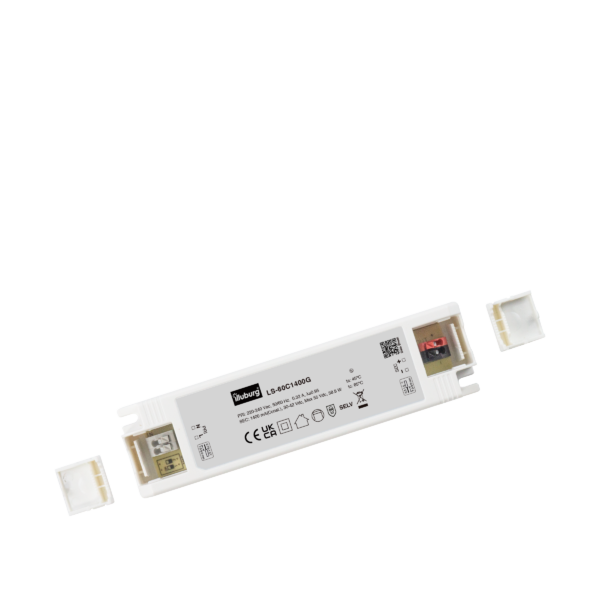

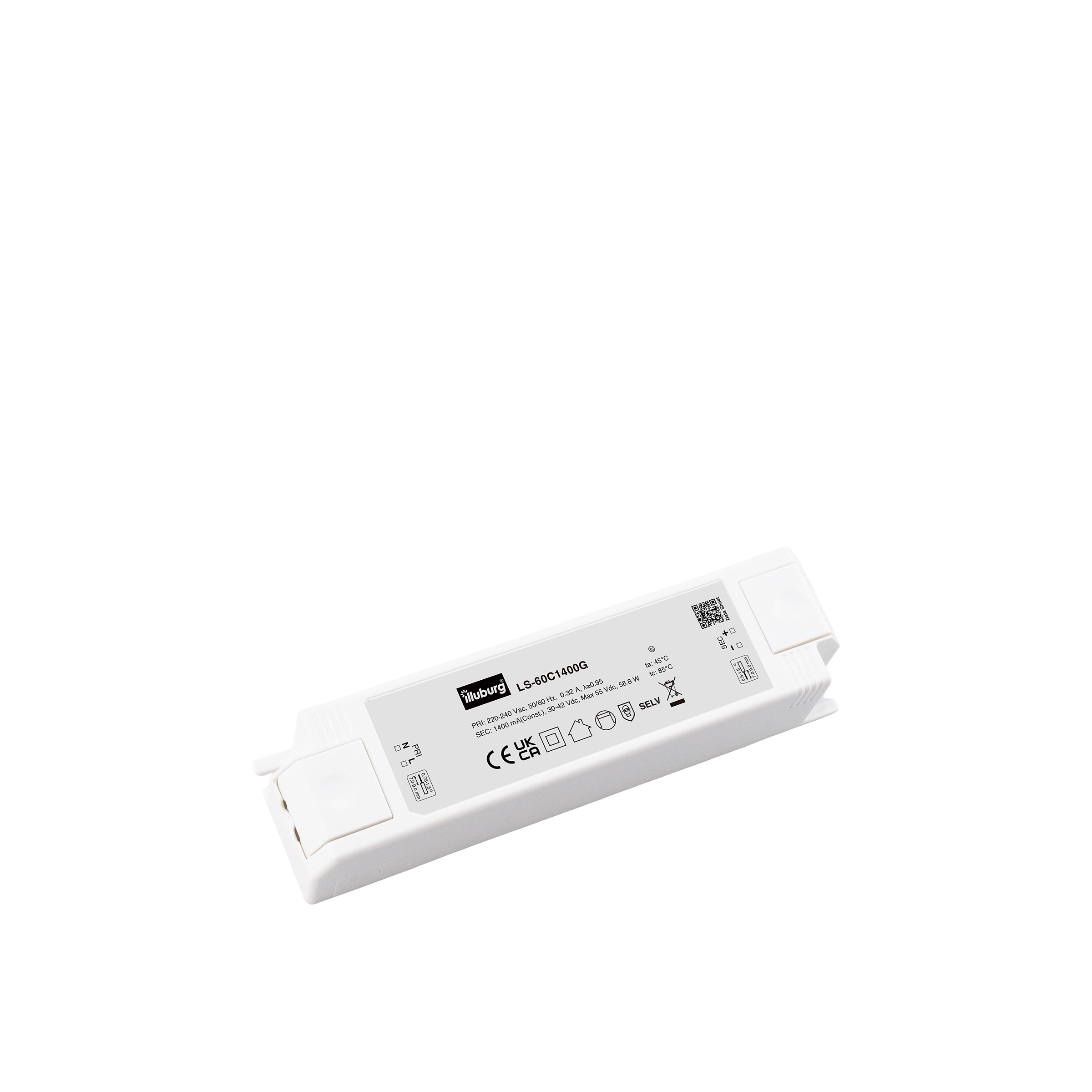

LS-60C1400G
LED power supply for 1400 mA constant current
30…42 Vdc, 42…60 W max., IP20, independent installation, non-dimmable
Electrical data
| Rated input voltage | 220…240 Vac |
| Range of input voltage (AC) | 198…264 Vac |
| Range of input voltage (DC) | 180…285 Vdc |
| Mains Frequency | 50/60 Hz |
| Power factor (λ) | ≥ 0.95 Full load, 230 Vac |
| Input current | 0.32 A max. |
| Inrush current | 55 A max. |
| Leakage current | < 250 μA |
| Output voltage | 30…42 Vdc |
| Output current | 1400 mA |
| Output power (nominal) | 42…60 W max. |
| Efficiency | ≥ 89 % |
| Life time | > 50,000 h |
| Dimmable | No |
LED Trafo 60W 1400mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Operating condition
| Operating temperature range (ta) | -25…+45 °C |
| Max. Surface temperature (tc) | 85 °C |
| Permitted rel. humidity | 10…90 % |
| Protection class | II |
| Type of protection | IP20 |
Protection
| Short circuit protection | Yes * |
| Overload protection | Yes * |
| No-load protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
LED Trafo 60W 1400mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 60945 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval marks | CE, UKCA |
| RoHS compliant | Yes |
Installation
| Type of installation | Independent installation |
| Type of connection | Spring-loaded terminal |
| Cable cross-section, input side | 0.75…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Cable preparation length, input side | 7…9 mm |
| Cable preparation length, output side | 7…9 mm |
Dimension
Connection
