ST-60CL-DALI2 (700…1400mA 60W)

Download

Bedienungsanleitung (PDF)

Operating Manual (PDF)

EAN: 4260608585088

SKU: ST-60CL-DALI2 Category:

Description

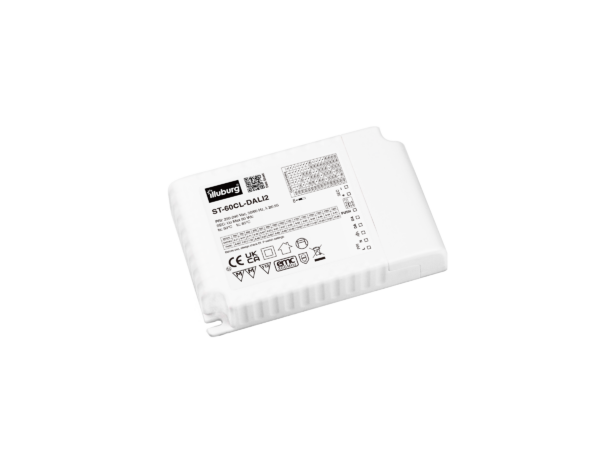

ST-60CL-DALI2

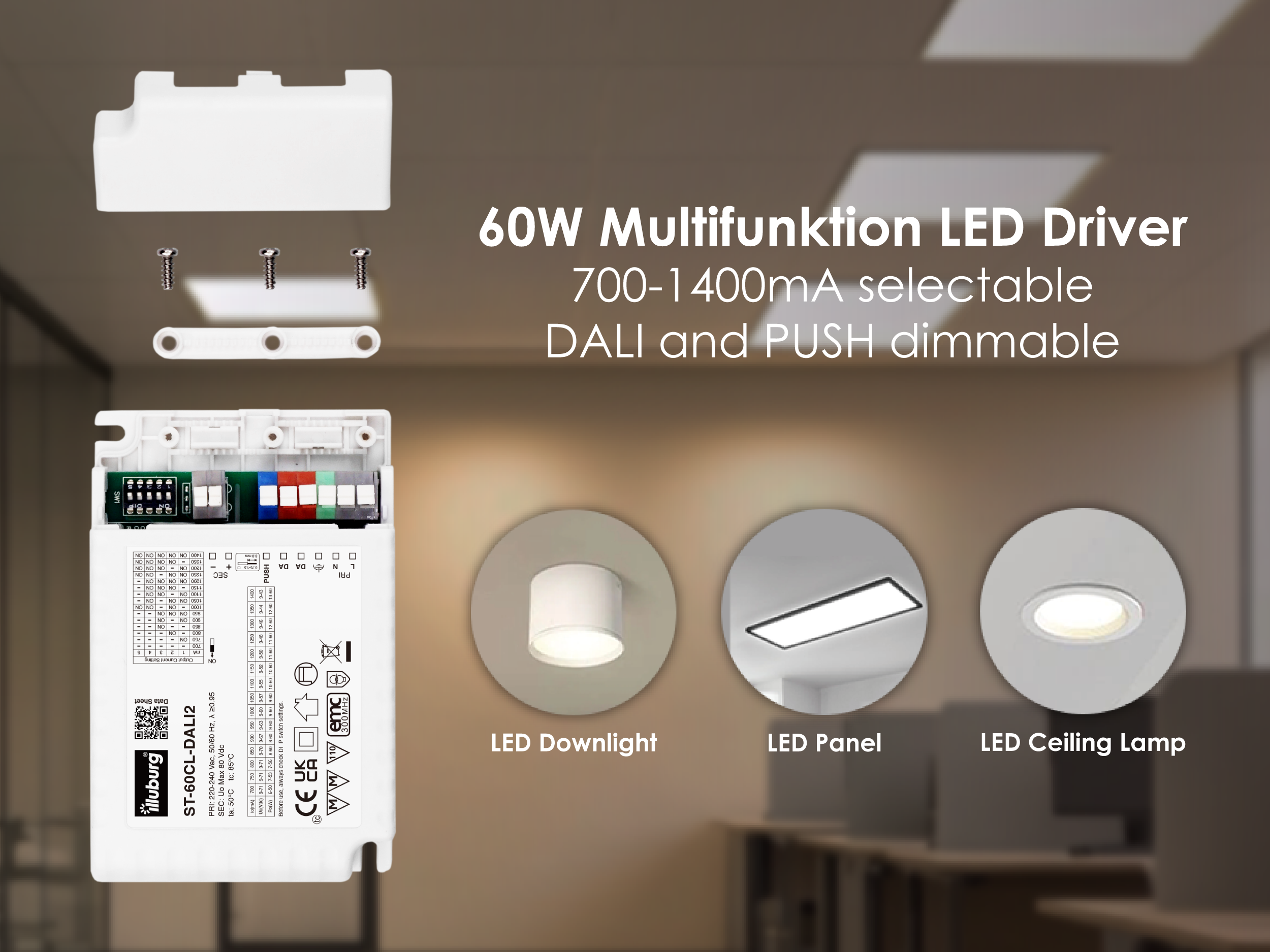

LED power supply with adjustable output current
60 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789



Electrical Data

Input Voltage (nominal) 220…240 Vac
Input Voltage Range 198…264 Vac
Input Voltage Range (DC) 200…240 Vdc
Mains Frequency 50/60 Hz
Power Factor (λ) ≥ 0.95  Full Load, 230 Vac
Input Current 0.34 A max.
Inrush Current 16 A max.
No-load Loss ≤ 0.5 W
Output Current 700 mA, 9-71 Vdc, 6-50 W
750 mA, 9-71 Vdc, 7-53 W
800 mA, 9-71 Vdc, 7-56 W
850 mA, 9-70 Vdc, 8-60 W
900 mA, 9-67 Vdc, 8-60 W
950 mA, 9-63 Vdc, 9-60 W
1000 mA, 9-60 Vdc, 9-60 W
1050 mA, 9-57 Vdc, 9-60 W
1100 mA, 9-55 Vdc, 10-60 W
1150 mA, 9-52 Vdc, 10-60 W
1200 mA, 9-50 Vdc, 11-60 W
1250 mA, 9-48 Vdc, 11-60 W
1300 mA, 9-46 Vdc, 12-60 W
1350 mA, 9-44 Vdc, 12-60 W
1400 mA, 9-43 Vdc, 13-60 W
Efficiency 88 %   Full Load, 230 Vac
Life Time 5 Years
Dimming mode DALI-2 (0-100 %), Primary PUSH (0-100 %)



Operating Condition

Operating temperature range (ta) -25…+50 °C
Max. Surface Temperature (tc) 85 °C
Permitted rel. Humidity 10…95 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overvoltage Protection Yes *
Overheating Protection Yes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards EN 61347-1, EN 61347-2-13
EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
Dali Standard (DT-6) IEC 62386-102, IEC 62386-207
Prüfzeichen CE, UKCA
RoHS Compliant Yes



Installation

Type of Installation Independent installation
Type of Connection Spring-loaded terminal
Cable Cross-Section, input side 0.75…1.5 mm²
Cable Cross-Section, output side 0.75…1.5 mm²
Cable Preparation Length, input side 6…8 mm
Cable Preparation Length, output side 6…8 mm



Dimension



Connection



Connection instructions
