LED Trafo 12V 30W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
LS-30V12E

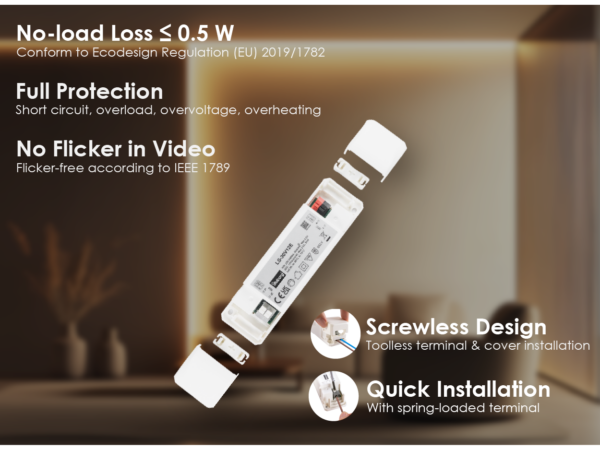

LED power supply for 12 Vdc constant voltage
2.5 A (30 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Input voltage (range) | 198…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | >0.95 |
Input Current | 0.2 A max. |
No-load loss | ≤0.5 W |
Inrush Current | 18.6 A max. |
Output Voltage | 12 Vdc |
Output Current | 0…2.5 A |
Output Power (nominal) | 30 W max. |
Efficiency | ≥ 85 % |
Life Time | > 50,000 h |
Dimmable | No |
Operating Condition
LED Trafo 12V 30W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 75 °C |
Permitted rel. Humidity | 20…90 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * 105…150 % |
Overvoltage protection | Yes * >12.6 Vdc |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 61347-1, EN 61347-2-13 EN 61547, EN 55015 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
LED Trafo 24V 30W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal |
Cable Cross-section, input side | 0.5…1.5 mm² |
Cable Cross-section, output side | 0.5…1.5 mm² |
Cable Preparation length, input side | 7.0…9.0 mm |
Cable Preparation length, output side | 7.0…9.0 mm |
Dimension
Connection
LED power supply LS-30V12E: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), not dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 30 W, parallel connection possible. Our products can be used with full load.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.
Assembly: dimensions 136 x 38 x 28 mm (L x W x H), ambient temperature (ta) -25 – +45 °C. Connection by spring loaded clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device overload protection, surge protection, short circuit protection and overtemperature protection.
Quality: CE, furniture approval; Service life > 30.000 hours; Surface temperature (tc) 75°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage flicker-free 30w 30 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 30W constant voltage.
