UF-15V24P (24V 15W)
Description
LED Trafo 24V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
UF-15V24P
LED power supply for 24 Vdc constant voltage
0.625 A (15 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 200…240 Vac |
| Input Voltage (range) | 180…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | >0.8 Full load, 230 Vac |
| Input Current | 0.13 A max. Full load, 180 Vac |
| No-load Loss | ≤0.5 W |
| Output Voltage | 24 Vdc |
| Output Current | 0…0.625 A |
| Output Power (nominal) | 15 W max. |
| Efficiency | ≥ 85 % Full load, 230 Vac |
| Life Time | > 30,000 h Full load, 230 Vac |
| Dimmable | No |
LED Trafo 12V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 75 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overvoltage Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
LED Trafo 12V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-section, input side | 0.5…1.5 mm² |
| Cable Cross-section, output side | 0.5…1.5 mm² |
| Cable Preparation length, input side | 7.0…9.0 mm |
| Cable Preparation length, output side | 7.0…9.0 mm |
Dimension

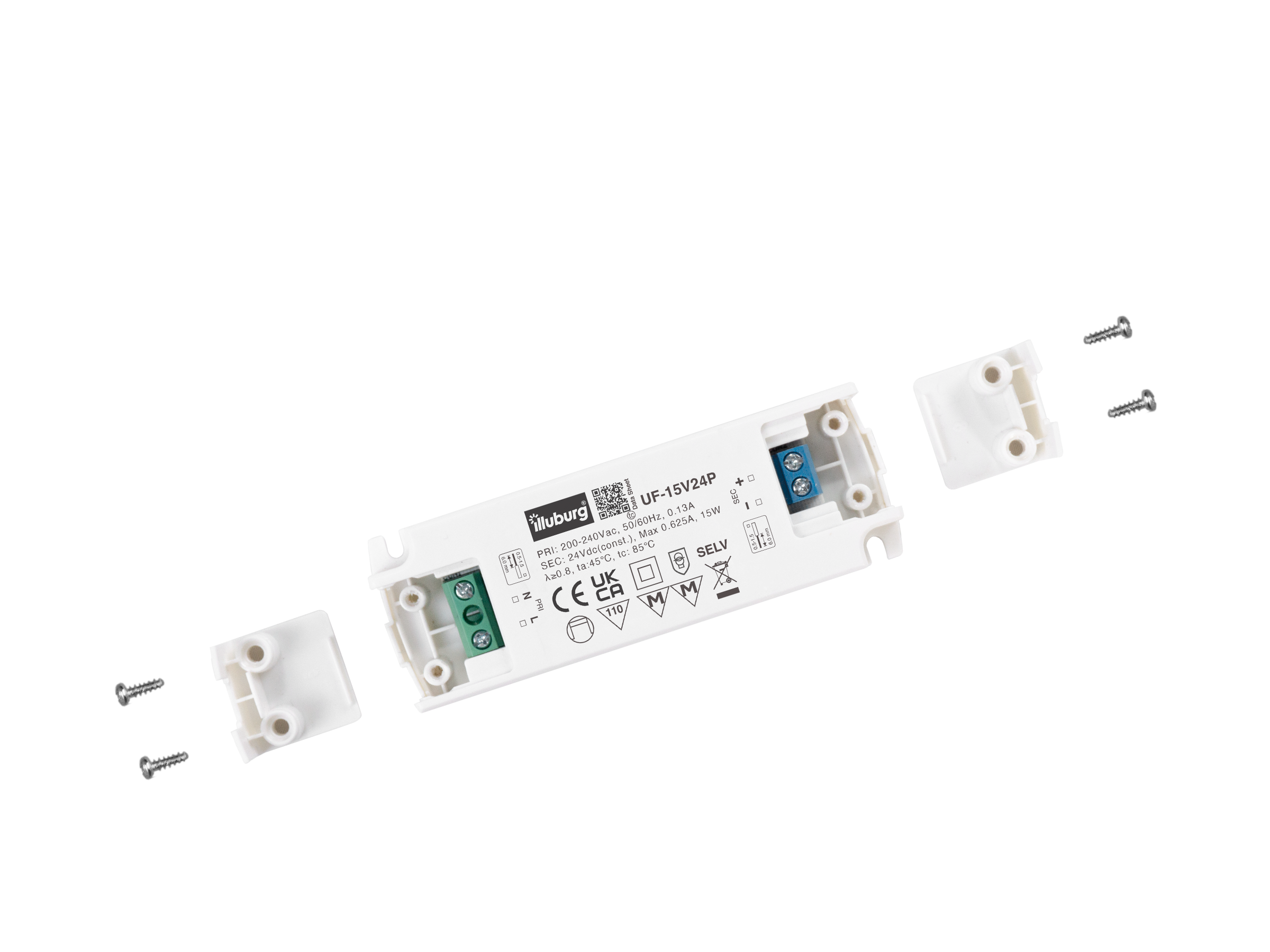

Connection
LED power supply UF-15V24: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 15 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 103 x 36 x 16 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection and overheating protection.
Quality: CE, Intertek, MM approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage super slim 15w 15 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 15W constant voltage slim.
