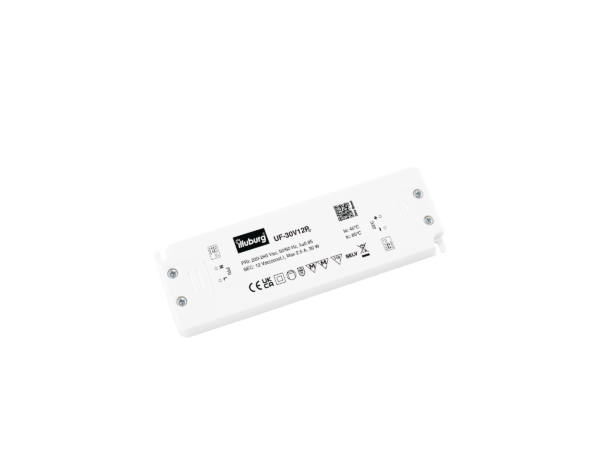

UF-30V12P (12V 30W)
Description
LED Trafo 12V 30W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
UF-30V12P
LED power supply for 12 Vdc constant voltage
2.5 A (30 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | > 0.95 Full Load, 230 Vac |
| Input Current | 0.17 A max. Full Load, 230 Vac |
| No-load loss | ≤0.5 W |
| Output Voltage | 12 Vdc |
| Output Current | 0…2.5 A |
| Output Power (nominal) | 30 W max. |
| Efficiency | ≥ 86 % |
| Life Time | > 30,000 h |
| Dimmable | No |
LED Trafo 12V 30W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overload Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN61547 EN 61000-3-2, EN 61000-3-3 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
LED Trafo 12V 30W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
Installation
| Type of Installation | Independent installation |

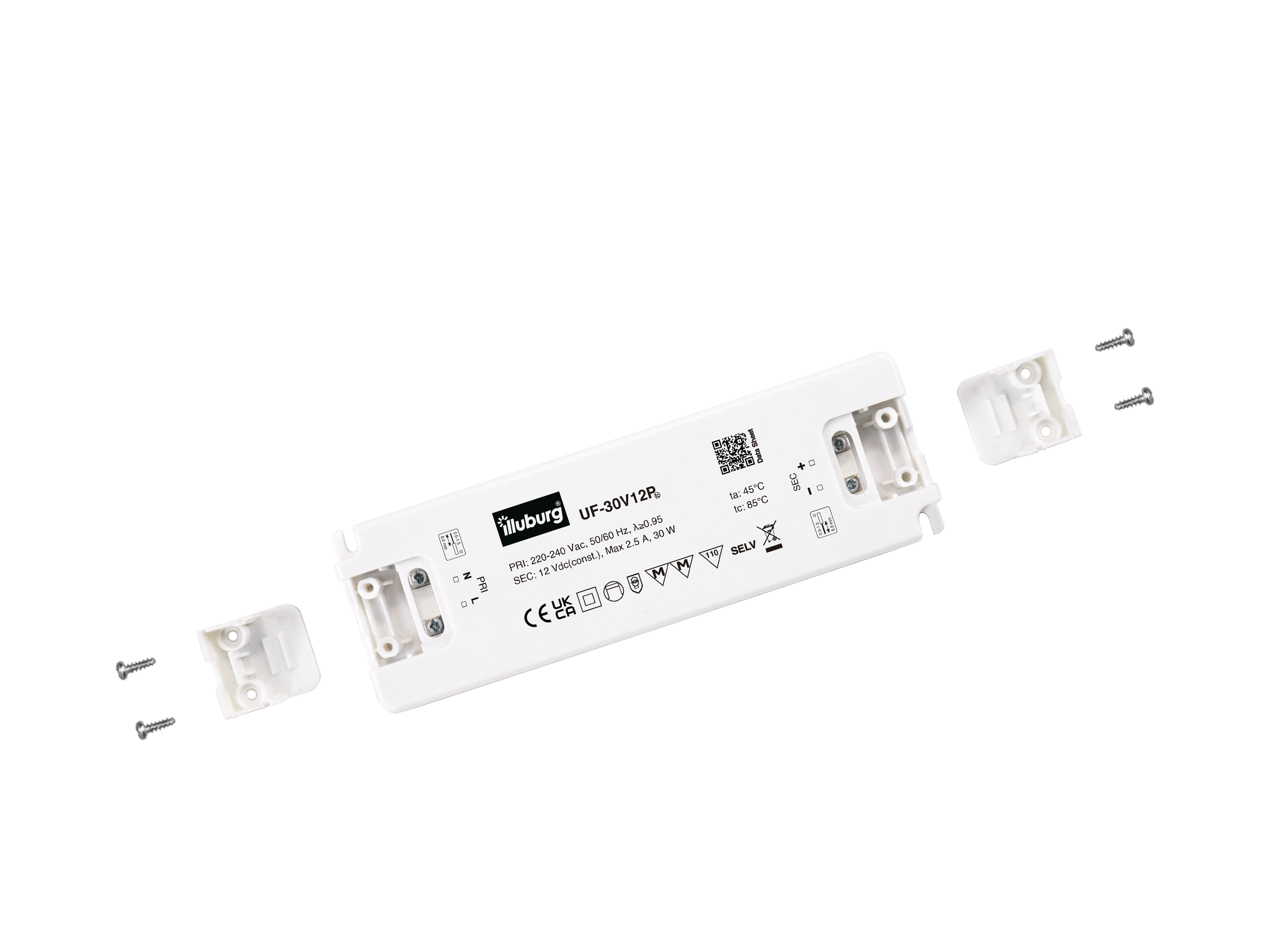

| Type of Connection | Screw terminal |
| Cable Cross-section, input side | 0.5…1.5 mm² |
| Cable Cross-section, output side | 0.5…1.5 mm² |
| Cable Preparation length, input side | 7.0…9.0 mm |
| Cable Preparation length, output side | 7.0…9.0 mm |
Dimension
Connection
LED power supply UF-30V12: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 30 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 103 x 36 x 16 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection and overheating protection.
Quality: CE, UKCA, MM approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage super slim 15w 20w 30w 15 20 30 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 30W constant voltage slim.
