EAN: 4260608588102

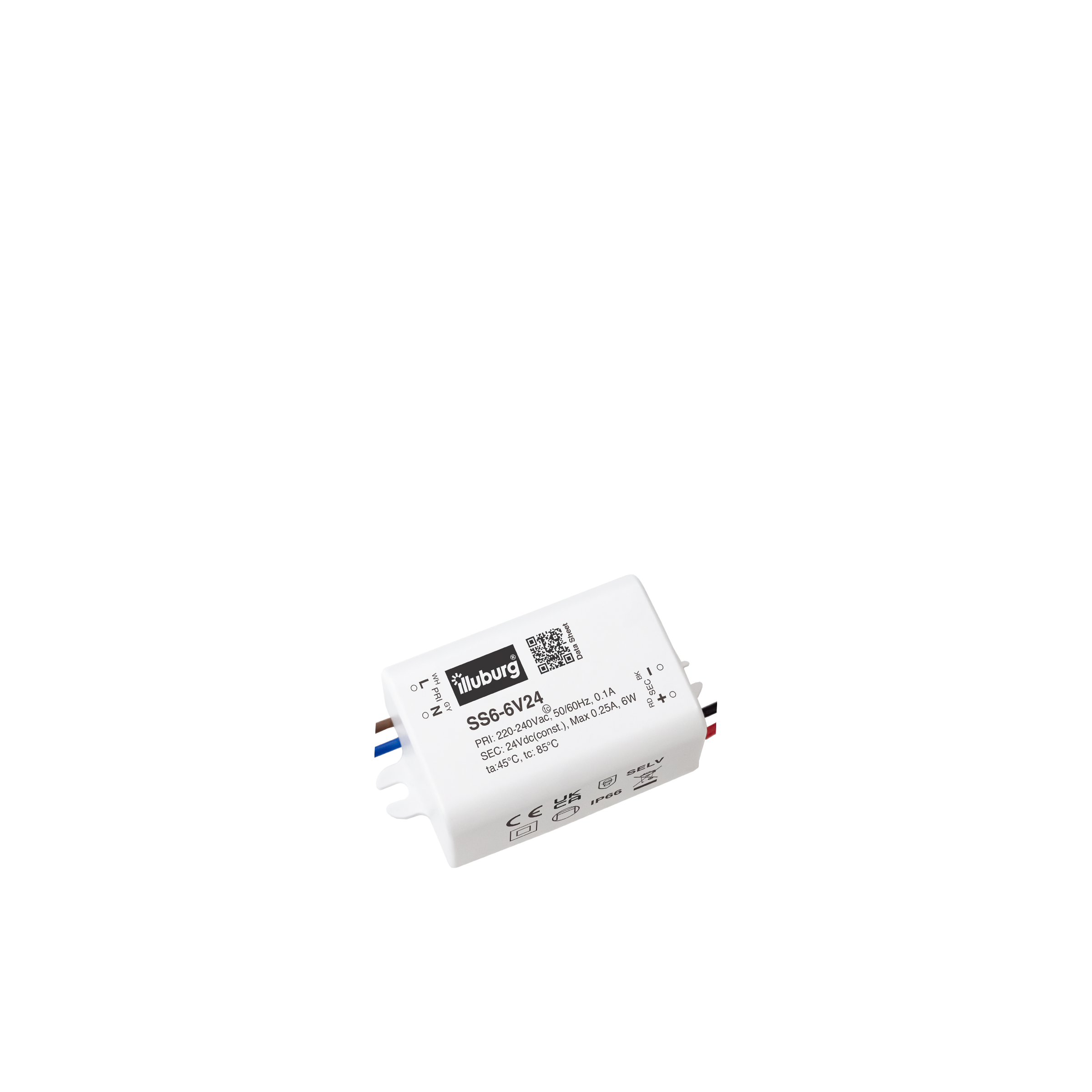

SS6-6V24 (24V 6W)
Description
SS6-6V24
LED power supply for 24 Vdc constant voltage
0.25 A (6 W) max., IP66, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (range) | 198…264 Vac |
| Rated input voltage (AC) | 220…240 Vdc |
| Mains Frequency | 50/60 Hz |
| Input Current | 0.1 A max. Full Load, 220…240 Vac |
| No-Load Loss | ≤ 0.5 W |
| Output Voltage | 24 Vdc |
| Output Current | 0…0.25 A |
| Output Power (nominal) | 6 W max. |
| Efficiency | ≥ 64 % |
| Life Time | > 30,000 h |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. humidity during operation | 20…90 % |
| Protection Class | Class II |
| Type of Protection | IP66 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overload Protection | Yes * |
(*) The output turns off and can be restored after correcting the problem and restarting the power supply.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 62493, EN 55015, EN61547 EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 |
| Approval Marks | CE，UKCA |
| RoHS Compliant | Yes |
Installation
| Type of installation | Built in installation |
| Cable length, input side | 200 ± 10 mm |
| Cable length, output side | 200 ± 10 mm |
| Cable cross-section, input side | 2 x 22 AWG |
| Cable cross-section, output side | 2 x 22 AWG |
| Cable Preparation Length, input side | 6 mm tinned |
| Cable Preparation Length, output side | 6 mm tinned |
Dimension
Connection
