EAN: 4260608587785

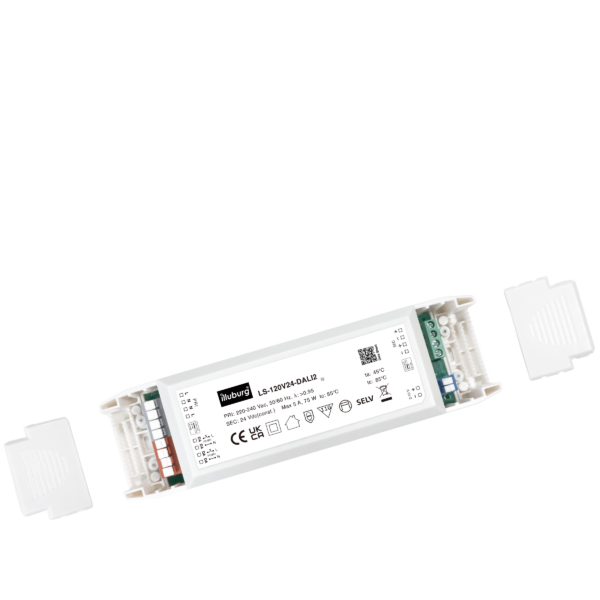

LS-120V24-DALI2 (24V 120W)
Description
LS-120V24-DALI2
LED power supply for 24 Vdc constant voltage
5 A (120 W) max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.), 0-10V (sec.), PWM
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥0.99 Full Load, 230 Vac |
| Input Current | 0.6 A max. |
| Inrush Current | 30 A max. |
| No-load loss | ≤ 0.3 W |
| Output Voltage | 24 Vdc |
| Output Current | 0.5…5 A |
| Output Power (nominal) | 12…120 W |
| Efficiency | ≥ 92 % Full Load, 230 Vac |
| Life Time | 5 Years Full load |
| Dimming mode | DALI-2, PUSH (pri.), 0-10V (sec.), PWM (sec.) |
Operating Condition
| Operating temperature range (ta) | -25…+40 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| DALI protocol standard | IEC 62386-102, IEC 62386-207 |
| Approval Marks | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 7…9 mm |
| Cable Preparation Length, output side | 7…9 mm |
Dimension
Connection
