EAN: 4260608588157
ECO-240B-CW(16500lm, 6000K)
Description

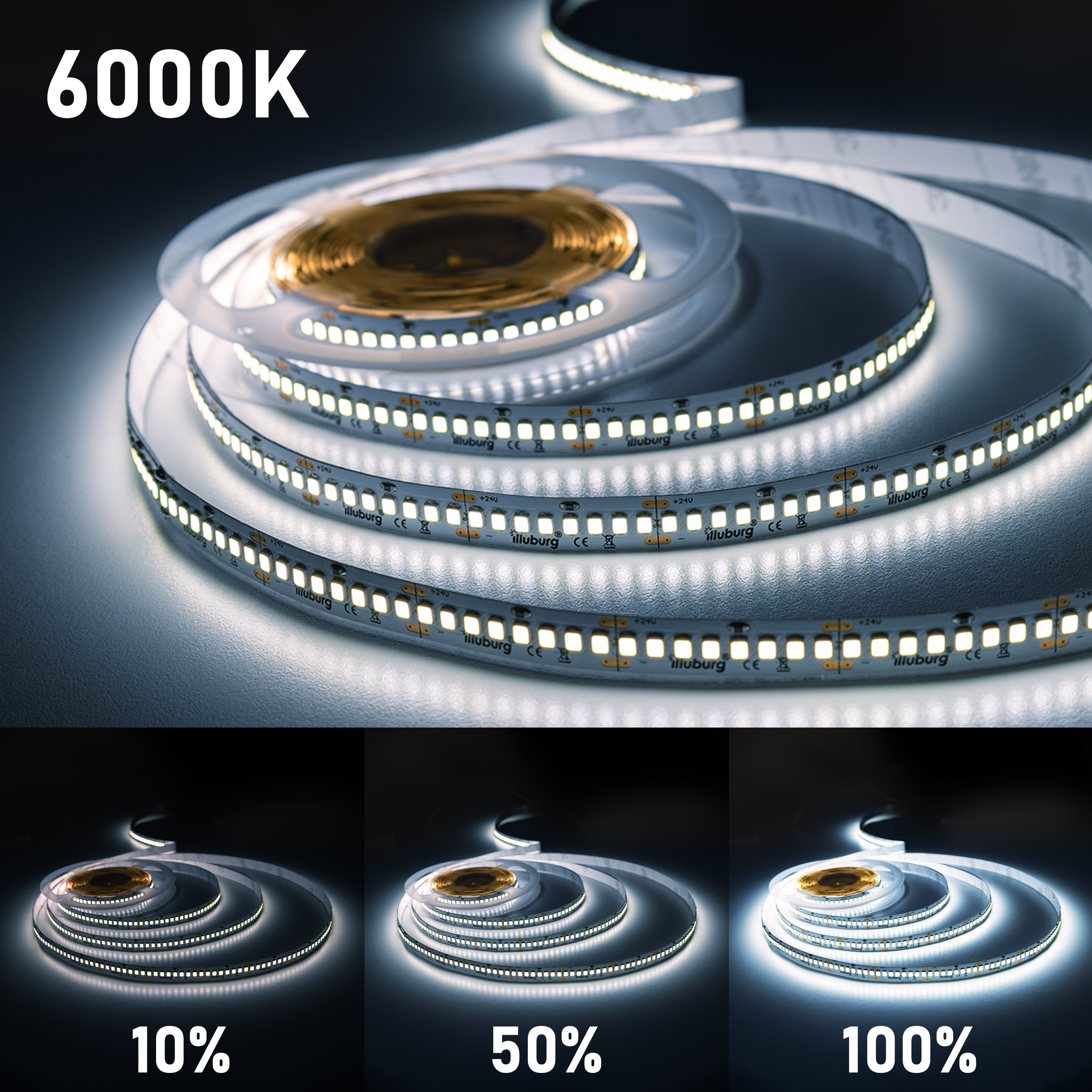

LED Strip 24V 5m Role Kaltwhite 6000K SMD2835 110W 1200 LEDs 16500lm Flexible LED Strip
ECO-240B-CW
Flexible LED Strip 5 m Role
240 LEDs/m, 150 lm/W, 22 W/m, 24 V, 6000 K
LED Strip 24V 5m Role Kaltwhite 6000K SMD2835 110W 1200 LEDs 16500lm Flexible LED Strip
Technical Data
| Model | ECO-240B-CW |
| LED type | SMD 2835 |
| Operating voltage | 24 Vdc (constant voltage) |
| LED quantity | 1200 (240 LEDs/m) |
| Power | 110 W (22 W/m) |
| Efficiency | 150 lm/W |
| Light flux | 16500 lm (1200 lm/m) |
| CRI | > 80 Ra |
| Color temperature | 6000 K |
| Length | 5000 mm |
| Width | 10 mm |
| Hight | 1.4 mm |
| Life time | > 30.000 h |
| Operating temperature (tc) | -25 °C … +80 °C |
| Storage temperature | -40 °C … +100 °C |
| Protection type | IP20 |
| CE / RoHS | yes |
| Energy efficiency class | D (by regulation EU2019/2015) |
LED Strip 12V 5m Role Warmwhite 2700K SMD2835 60W 640 LEDs 6000lm Flexible LED Strip
Dimension
LED Streifen 12V 5m Rolle Warmweiss 2700K SMD2835 60W 640 LEDs 6000lm Flexibler LED Strip
Connection instructions
LED Strip ECO-240B-CW: Flexibler LED-Streifen 24 V Konstantspannung, 6000 – 6500 K Warmweiß, 2835 SMD LED, 1200 LEDs (240 LEDs/m), 5 Meter.
LEISTUNG & EFFIZIENZ: Leistung 110 W (22 W/m), Lichtstrom 16500 lm (3300 lm/m), Effizienz 150 lm/W, CRI > 80 Ra.
INSTALLATION: Breite 10 mm, Höhe 1,2 mm, Abschnittslänge 33 mm, Schutzart IP20, geeignet für Möbeleinbau (Küche, Möbel, Spiegel etc).
QUALITÄT: Prüfzeichen CE, Lebensdauer > 30.000 Stunden, Betriebstemperatur -25 – +80 °C, Lagertemperatur -40 – +100 °C.
LIEFERUNG: 1 x 5 Meter LED-Streifen Rolle ohne LED-Netzteil oder andere Zubehöre.
led streifen strip leiste kaltweiss 6000k 6500k 5m 24v 110w ip20 möbeleinbau dimmbar smd 2835
