LS-75V12-DALI
LED power supply for 12 Vdc constant voltage
6.25 A (75W) max., IP20, independent installation
Dimmable with DALI, 1-10V, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥0.9 Full Load, 230 Vac |
| Input Current | 0.5 A max. |
| Inrush Current | 15 A max. 230 Vac |
| Output Voltage | 12 Vdc |
| Output Current | 6.25 A max. |
| Output Power (nominal) | 75 W max. |
| Efficiency | ≥ 84 % Full Load, 230 Vac |
| Life Time | > 50,000 h |
| Dimming mode | DALI, 1-10V, PUSH (pri.) |
| Dimming range | 1…100 % |
Operating Condition
| Operating temperature range (ta) | -25…+45 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
| Standards (DALI) | IEC 62386-102 (1.0), IEC 62386-207 (1.0) |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal, Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
Dimension

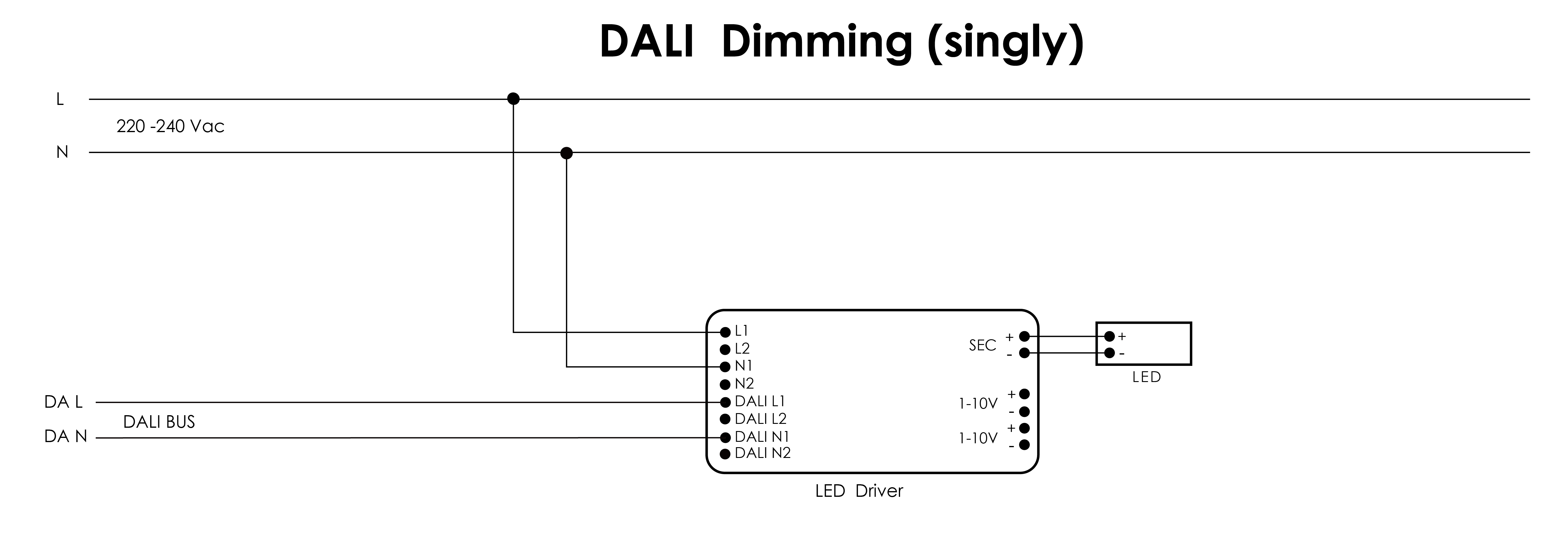

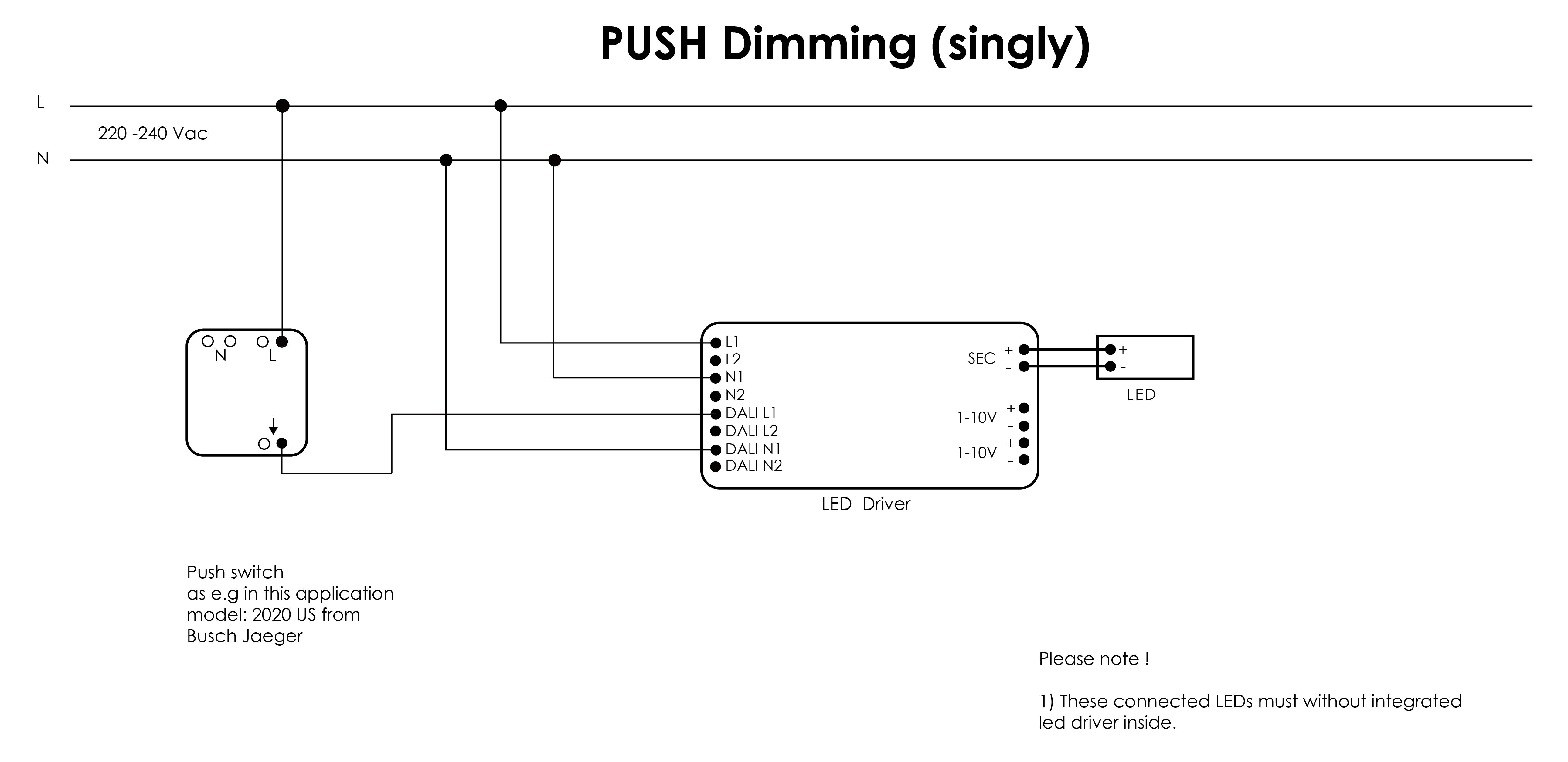

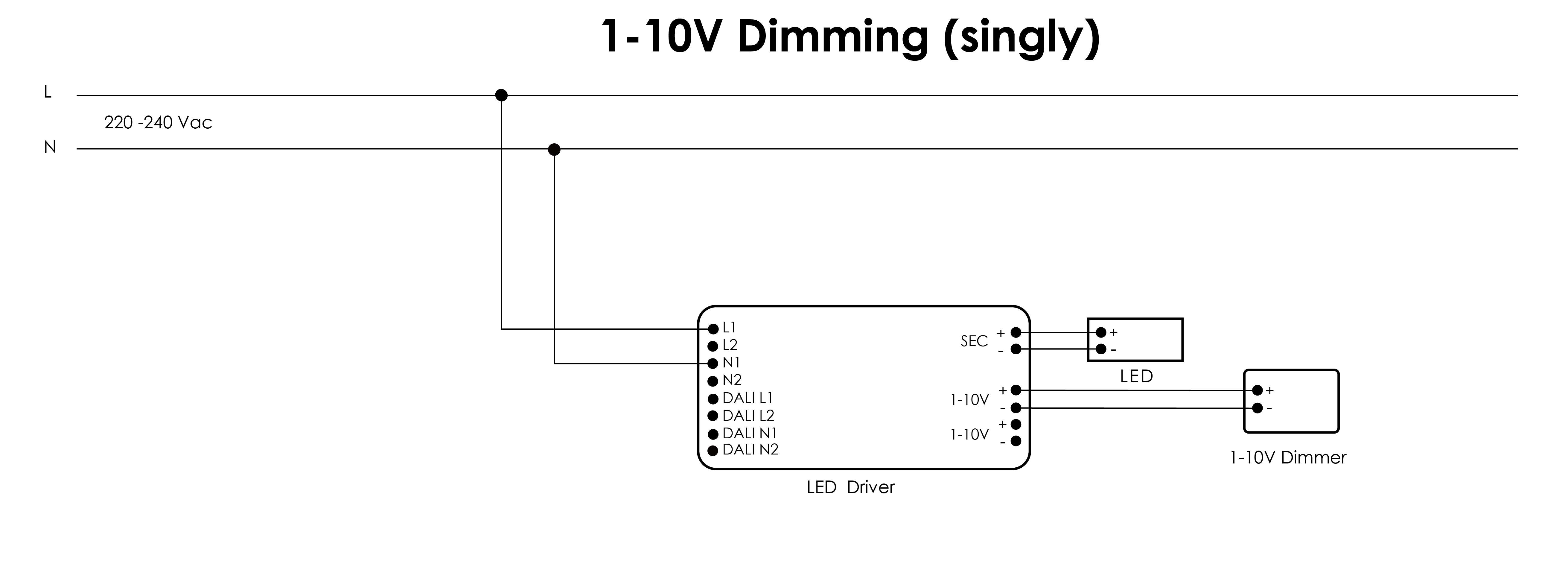

Connection
