COB LED strip 24V RGB 576LEDs/m 30lm/W Flexible LED band
C10-576B-RGB
Flexible LED Strip 2.5 m, 5 m, 10 m Roll
576 LEDs/m, 30 lm/W, 14 W/m, 24 V, RGB
COB LED strip 24V RGB 576LEDs/m 30lm/W Flexible LED band
Technical Data
| Model | C10-576B-RGB |
| LED type | COB |
| Operating voltage | 24 Vdc (constant voltage) |
| LED quantity | 576 LEDs/m |
| Power | 14 W/m |
| Efficiency | 30 lm/W |
| Light flux | 420 lm/m |
| CRI | > 90 Ra |
| Length | 2.5 m, 5 m, 10 m |
| Width | 10 mm |
| Hight | 2 mm |
| Life time | > 50,000 h |
| Operating temperature (tc) | -25 °C … +45 °C |
| Protection type | IP20 |
| CE / RoHS | yes |
| Energy efficiency class | G (by regulation EU2019/2015) |
| Scope of delivery | 1 x LED strip without power supply 2 x connectors (1 x wire to board, 1 x board to board) |
COB LED strip 24V RGB 576LEDs/m 30lm/W Flexible LED band
Dimension
COB LED strip 24V RGB 576LEDs/m 30lm/W Flexible LED band

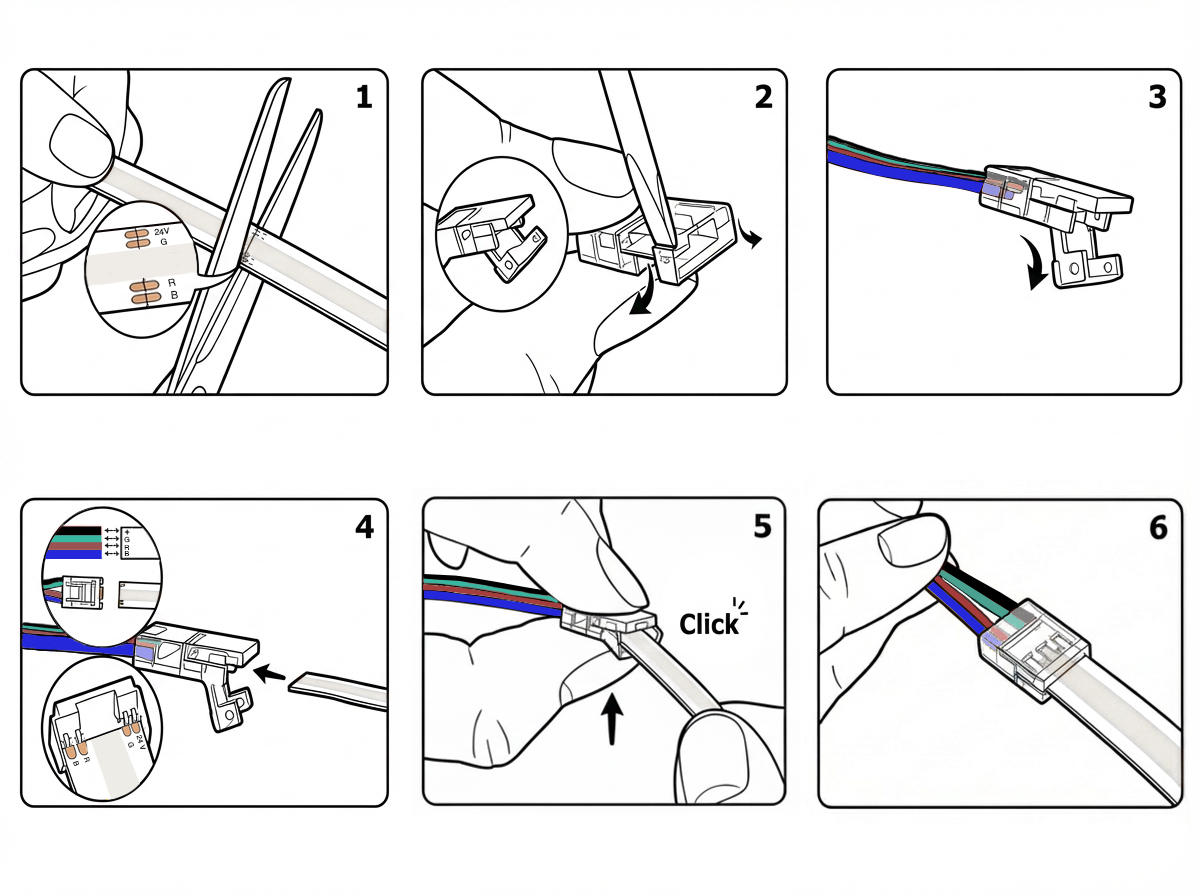

Connection instructions
illuburg 24V COB LED Strip RGB 5m 576LEDs/m CRI90+ Dimmable Self-adhesive LED Strip Light Band Bar Chain
LED Strip C10-576B-RGB: 24 V constant voltage flexible COB LED strip, RGB multicolor, 5760 LEDs (576 LEDs/m), 5 metres.
BRIGHTNESS: Uniform light with luminous flux 420 lm/m, efficiency 30 lm/W, beam angle 140°, colour rendering index 90+, energy efficiency class G (according to Regulation EU2019/2015).
SOLDER-FREE: Thanks to the roll-to-roll process and solder-free design, the LED strip achieves significantly higher durability and lower brightness loss at the same time.
INSTALLATION: Width 10 mm, height 2 mm, easy to cut with a section length of 31.25 mm (18 LEDs each), protection class IP20.
USE: The double-sided 3M adhesive tape on the back simplifies installation on various surfaces such as furniture, kitchens, mirrors, etc.
QUALITY: Service life > 50,000 hours, operating temperature -25 to +45 °C. Scope of delivery: 1 x 5 metre LED strip without power supply, 2 x connectors (1 x wire to board, 1 x board to board).
