COB LED strip 24V cct 2700K – 6500K 576LEDs/m 67lm/W Flexible LED band
C8-576B-CCT5
Flexible LED Strip 5 m Roll
576 LEDs/m, 67 lm/W, 10 W/m, 24 V, 2700 – 6500 K
COB LED strip 24V cct 2700K – 6500K 576LEDs/m 67lm/W Flexible LED band
Technical Data
| Model | C8-576B-CCT5 |
| LED type | COB |
| Operating voltage | 24 Vdc (constant voltage) |
| LED quantity | 576 LEDs/m |
| Power | 10 W/m |
| Efficiency | 67 lm/W |
| Light flux | 670 lm/m |
| CRI | > 90 Ra |
| Color temperature | 2700 – 6500 K |
| Length | 5 m |
| Width | 8 mm |
| Hight | 2 mm |
| Life time | > 50,000 h |
| Operating temperature (tc) | -25 °C … +45 °C |
| Protection type | IP20 |
| CE / RoHS | yes |
| Energy efficiency class | G (by regulation EU2019/2015) |
| Scope of delivery | 1 x LED strip without power supply 2 x connectors (1 x wire to board, 1 x board to board) |
COB LED strip 24V cct 2700K – 6500K 576LEDs/m 67lm/W Flexible LED band

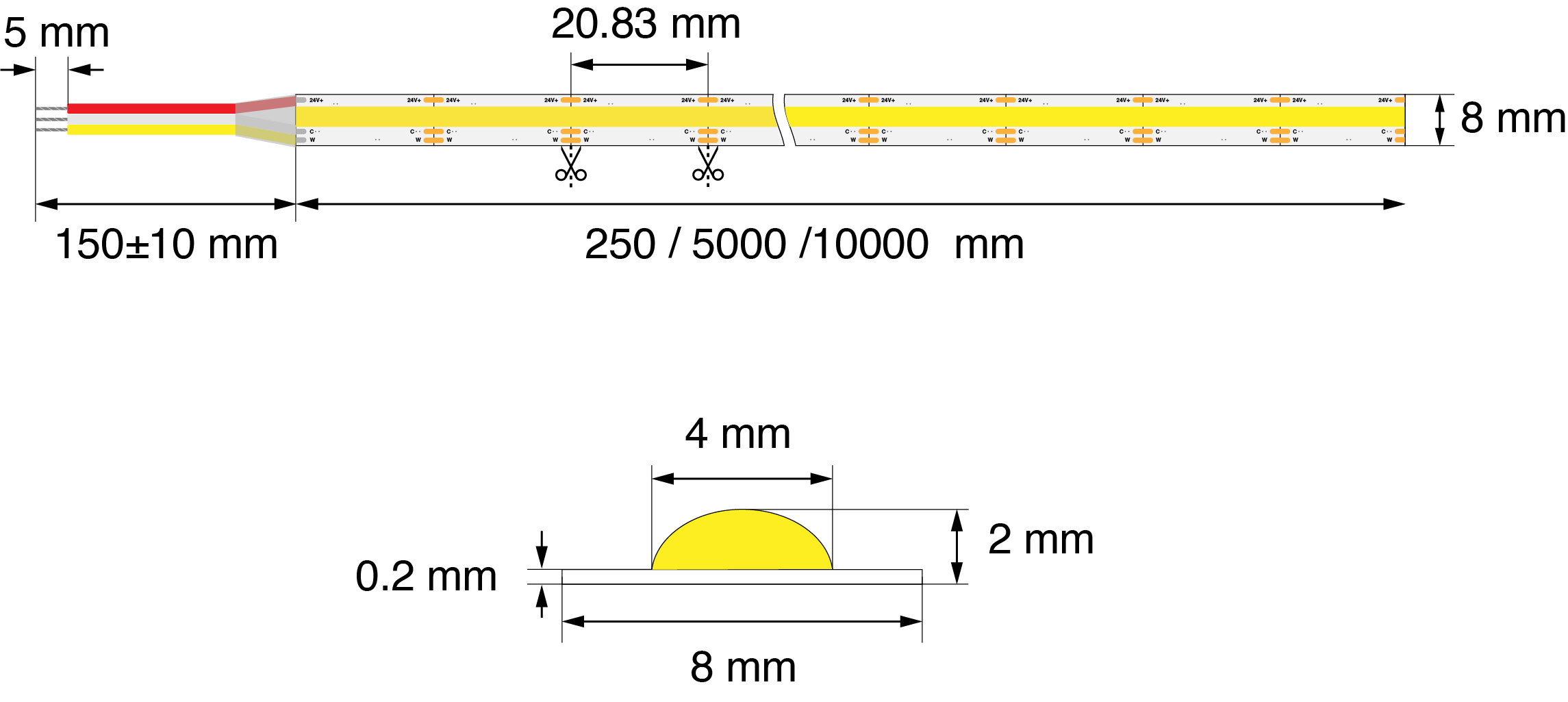

Dimension
COB LED strip 24V cct 2700K – 6500K 576LEDs/m 67lm/W Flexible LED band
Connection instructions
illuburg 24V COB LED Strip CCT Warm White Neutral White Cool White 2700K-6500K 5m 576LEDs/m CRI90+ Dimmable Self-adhesive LED Strip Light Band Bar Chain
LED Strip C8-576B-CCT5: 24 V constant voltage flexible COB LED strip, 2700 – 6500 K CCT colour temperature adjustable, 2880 LEDs (576 LEDs/m), 5 metres.
BRIGHTNESS: Uniform light with luminous flux 670 lm/m, efficiency 67 lm/W, beam angle 140°, colour rendering index 90+, energy efficiency class G (according to Regulation EU2019/2015).
SOLDER-FREE: Thanks to the roll-to-roll process and solder-free design, the LED strip achieves significantly higher durability and lower brightness loss at the same time.
INSTALLATION: Width 8 mm, height 2 mm, easy to cut with a section length of 20.8 mm (12 LEDs each), protection class IP20.
USE: The double-sided 3M adhesive tape on the back simplifies installation on various surfaces such as furniture, kitchens, mirrors, etc.
QUALITY: Service life > 50,000 hours, operating temperature -25 to +45 °C. Scope of delivery: 1 x 5 metre LED strip without power supply, 2 x connectors (1 x wire to board, 1 x board to board).
